Shear Beam Yük Hücresi
>
Shear Beam Load Cell 1000kg for Agriculture and Animal Husbandry

Shear Beam Load Cell 1000kg for Agriculture and Animal Husbandry

Ürün Ayrıntıları:
Menşe yeri: Çin
Marka adı: RUIJIA
Sertifika: CE/ROSE
Model numarası: RJ
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Marka adı:
RUIJIA
Sertifika:
CE/ROSE
Model numarası:
RJ
Malzeme:
Paslanmaz Çelik/Alaşımlı Çelik
Kapasite:
0-1000kg
Sıfır bakiyesi:
±1 %FS
önerilen voltaj:
5 ~ 15V
Çalışma sıcaklığı:
-20 ~ +80 ° C
Histerezis:
%0,03FS
Vurgulamak:

High Light

Vurgulamak:

1000kg shear beam load cell

,

agriculture shear beam load cell

,

animal husbandry load cell

Ticaret Bilgisi
Min sipariş miktarı:
1
Fiyat:
$54~58
Ambalaj bilgileri:
karton veya tahta sandık
Teslim süresi:
5-8 iş günü
Ödeme koşulları:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:
2000 pcs/ay
Ürün Tanımı

Shear Beam Load Cell 1000kg for Agriculture and Animal Husbandry

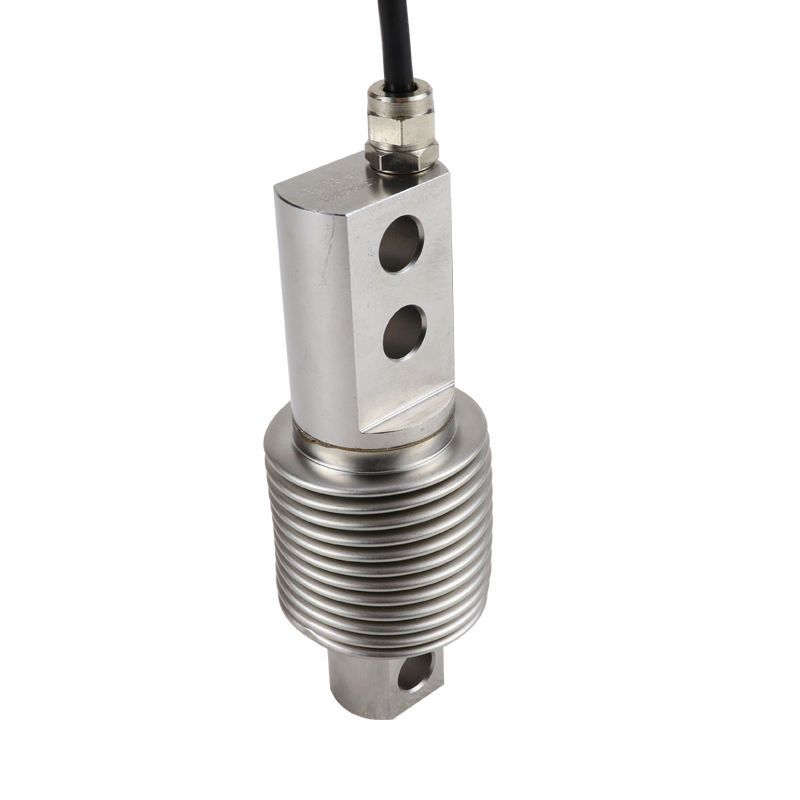

It is formed by welding and sealing metal bellows, so it is called bellows sensor. It can bear both tension and compression, and has strong anti-eccentric load and anti-fatigue ability.
Shear Beam Load Cell 1000kg for Agriculture and Animal Husbandry 0
Product features
1.Wide range of capacities from 0 to 1000kg
2.Bellows design,effective shock absorption.
3.Easy to installation
4. High precision and good sealing performance.
5.Applied to various weighing occassions such as continuous cumulative belt scale,hopper scale,material tank scale and dynamic weighing scale etc.
Shear Beam Load Cell 1000kg for Agriculture and Animal Husbandry 1
Parameters Table
Measuring range
0-1000kg
Material
Stainless steel/Alloy steel
Output sensitivity
2.0/3.0±0.05mV/V
Impedance
350Ω
Zero output
±1%F.S.
Insulance
≥5000MΩ/100VDC
Non-linear
0.03%F.S.
Operating Voltage Range
5-15V
Hysteresis
0.03%F.S.
Operating Temp Range
-20-60℃
Repeatability
0.03%F.S.
Safe overload
150%
Creep(30min)
0.03%F.S.
Maximum Overload
200%
Temp.effect on output
0.05% F.S. / 10ºC
Cable size
Φ5x3m
Temp.effect on zero
0.05% F.S. / 10ºC
Cable ultimate pull
10kg
Response frequency
10kHz

Shear Beam Load Cell 1000kg for Agriculture and Animal Husbandry 2

Packing
Kit Weighing Scale Sensor Load Cell For Livestock

♦ Package List:
4 * Load cell, 1*Junction box, 1*Weight indicator
♦ Packing:
packing materials are eco-friendly and really protect your product well. Every item has their own independent packing with Carton box.
♦ Delivery:
A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping




Shear Beam Load Cell 1000kg for Agriculture and Animal Husbandry 3

FAQ

Q1:How do you control the quality?

A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q3: What is the payment terms?
A: T/T, Western Union, Paypal, Escrow alibaba is acceptable.Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods. If we don’t make the shipment, you still can take back your money.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.
