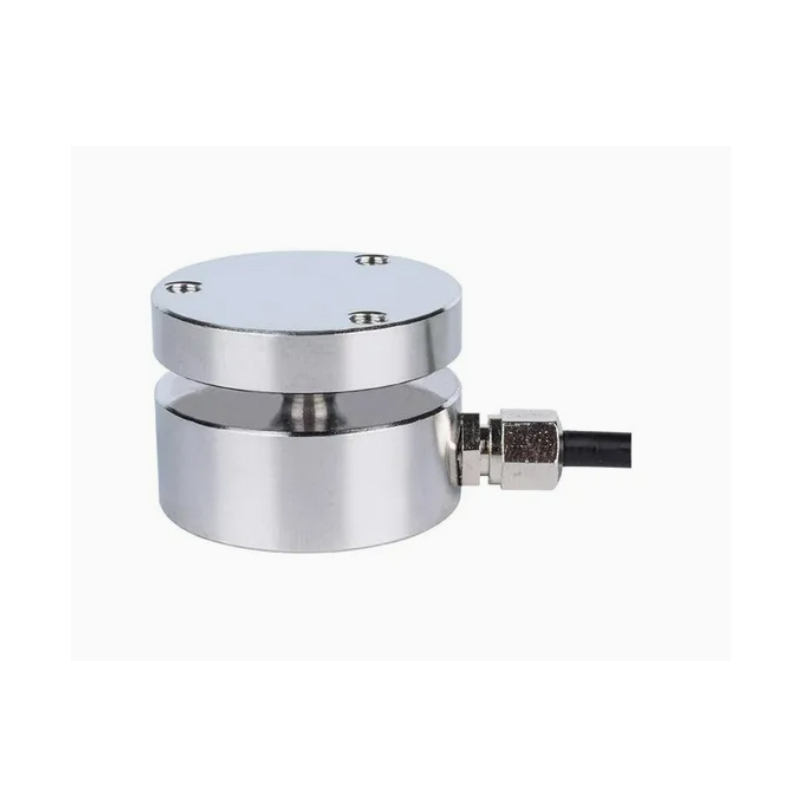

Hot Sale Genuine Custom Range Micro Flatbed Pressure Load Cell for Clamping
The Weighing load cell is a force sensor. Sensors are devices that convert the form of energy into readable electrical signals. In this case, the weighing load cell converts the force into voltage, which can be read by electrical equipment.
Weighing load cell, respectively are single point load cell, cantilever beam load cell, column load cell, S beam load cell, spoke load cell. Weighing load cell made of stainless steel or alloy steel material, German technology, high precision, anti-bias load ability, strong impact resistance; Easy to install, high level of protection. Applicable to electronic scale, counting scale, electronic balance, packaging scale, hopper scale, industrial weighing instrument, industrial weighing system and so on.
| Specifications |
Technique |
| Capacity |
10,20,50,100,200,500kg |
| Rated output |
2.0±1%mV/V |
| Zero balance |
±0.02 mV/V |
| Non-linearity |
0.2%F.S. |
| Hysteresis |
0.2%F.S. |
| Repeatability |
0.2%F.S. |
| Temp.effect on output |
0.1%F.S./10ºC |
| Temp.effect on zero |
0.1%F.S./10ºC |
| Input impedance |
700±20Ω |
| Output impedance |
700±10Ω |
| Insulation |
≥5000MΩ/100VDC |
| Recommended excitation |
5~15V |
| Maximum excitation |
20V |
| Compensated temp range |
-10~60ºC |
| Operation temp range |
-20~80ºC |
| Safe overload |
150%F.S. |
| Ultimate overload |
200%F.S. |
| Cable size |
φ3x3000mm |
Company Profile
Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
