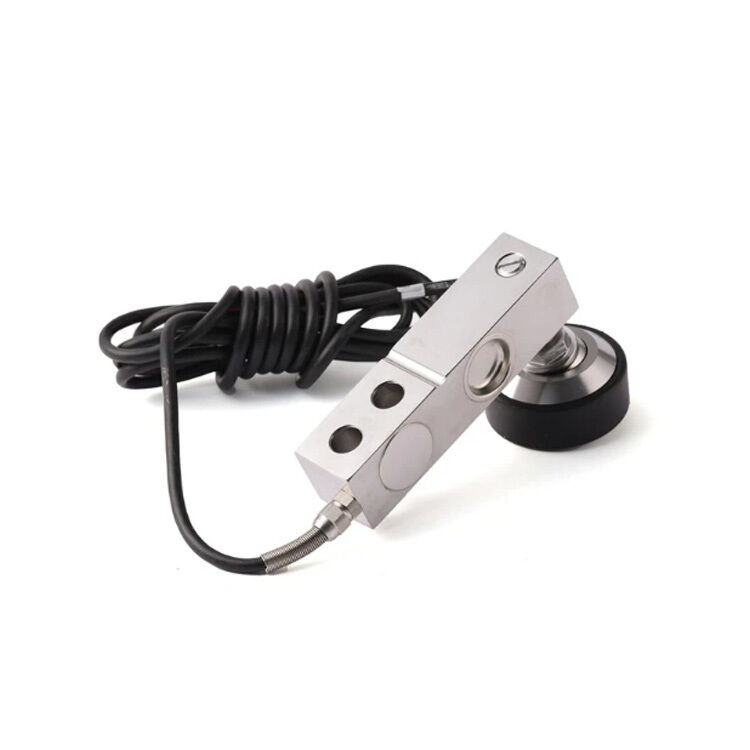

Single Shear Beam Bending Load Cells

Ürün Ayrıntıları:

Menşe yeri:	Çin
Marka adı:	RUIJIA
Sertifika:	CE
Model numarası:	RJ

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Marka adı:

RUIJIA

Sertifika:

Model numarası:

Kapasite:

100KG-10.000KG

Birleşik Hata::

± 0.02

Nominal Çıktı::

2dk / 3dv/v±0,003

Sürünme(%FS/30dak)::

± 0.02

Doğrusal olmama(%FS):

± 0.02

Dereceyi savun:

IP68

Vurgulamak:

High Light

Vurgulamak:

single shear beam load cell

bending load cell with warranty

shear beam load sensor

Ticaret Bilgisi

Min sipariş miktarı:

Fiyat:

USD5 ~145/piece

Ambalaj bilgileri:

Standart İhracat Ambalajı

Teslim süresi:

5-8 İŞ GÜNÜ

Ödeme koşulları:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini:

Aylık 1000 Adet / Adet

Ürün Tanımı

Single Shear Beam Bending Load Cells

Details

Single Shear Beam Load Cells CAPACITY: 100kg-10,000kg Features: Single Shear Beam Load Cell, Capacity range from 100kg to 10,000kg Material: Alloy Steel or Stainless Steel, good quality, High accuracy and low costs, Laser Sealed, Water Proof to IP68, Anti corrosion. APPLICATIONS:...

Capacity: 100kg-10,000kg

Features:
Single Shear Beam Load Cell, Bending beam load cell.

Capacity range from 100kg to 10,000kg.
Material: Alloy Steel or Stainless Steel, High quality, high accuracy OIML standard, low costs,
Laser Sealed, Water Proof to IP68, Anti corrosion.
Application: Floor scales, platform scales, weigh bridge and other weighing devices.

Dimensions:(mm)

Single Shear Beam Bending Load Cells 0

Capacity	L	L1	L2	L3	L4	d	B	M
1~4(klb) 0.5~2(t) 5KSE	130	56.5	15.8	25.4	76.2	13.5	31.8	M16X2 M12X1.75 1/2-20UNF
5~10(klb) 2.5~5(t)	171.5	77.2	19.1	38.1	95.3	20	38.1	M18X1.5 3/4-16UNF
20(klb) 10(t)	222.3	101.6	25.4	50.8	120.7	26.2	50.8	M24x2 1-12 UNF

SPECIFICATION:
Precision:		C3
Combined Error:		±0.02
Rated Output:		2mv / 3mv/v±0.003
Creep(%F.S/30min):		±0.02
Non-linearity(%F.S)		±0.02
Hysteresis:(%F.S)		±0.02
Zero balance(%F.S):		±1.0
Input resistance:		350±5
Output resistance:		350±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP68
Cable Length:		3 meters -10 meters
Wire Connection Method
RED=EXC+	BLACK=EXC-	GREEN=Signal+	WHITE=Signal-

Company Information

Single Shear Beam Bending Load Cells 1

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
