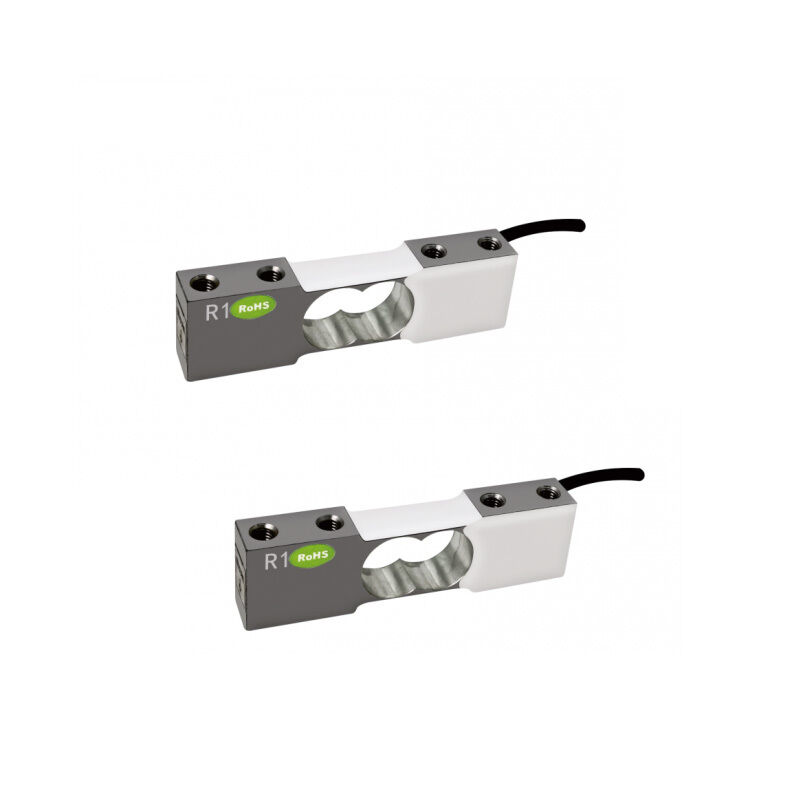

Low Capacity OIML Approval Single Point Load Cell
Low Capacity OIML Approval Single Point Load Cell NA96
The load cell is aluminium alloy strain gauge load cell,high precision and solid structure can apply for a lot of measurement.The single point weight sensor is suitable for kitchen scale,portable scale.etc.
Key Feature:
Aluminium alloy
Capacity: 1~30kg
Precision: 0.03%R.O.
Protection class: IP66/67
Rated Output : 2.0mV/V±10%
Usage & Application:
Mainly used in kitchen scale,portable scale.
Dimension:
Specification:
| Rated Capacities |
1~30kg |
| Rated Output |
2.0 mV/V±10% |
| Zero Balance |
±0.1000mV/V |
| Non-linearity |
0.03 %R.O. |
| Hysteresis |
0.03 %R.O. |
| Repeatability |
0.03 %R.O. |
| 30mins Creep |
0.03 %R.O. |
| 30mins Return |
0.03 %R.O. |
| Safe Overload |
150 %R.O. |
| Ultimate Overload |
200 %R.O. |
| Temperature Effect On Output |
0.01%R.O./℃ |
| Temperature Effect On Zero |
0.05 %R.O./℃ |
| Input Impedance |
1115±10 %Ω |
| Output Impedance |
1000±10 %Ω |
| Insulation Impedance |
≥2000MΩ/(50VDC) |
| Recommended Excitation |
5~12 VDC |
| Maximum Excitation |
15 VDC |
| OperatingTemperatureRange |
-20~60 ℃ |
| Construction |
Aluminum Alloy |
| Protection Class |
IP666/67 |
| Cable |
Φ3×0.3m |
| Recommended Platform Size |
|
| Mode of Connection |
Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
