Aluminium Alloy Compression Load Cell

Ürün Ayrıntıları:

Menşe yeri:	Çin
Marka adı:	RUIJIA
Sertifika:	CE
Model numarası:	RJ

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Marka adı:

RUIJIA

Sertifika:

Model numarası:

Ürün Menşei:

Çin

Ödeme:

Sevkiyat öncesi %100 ödeme

kapasiteler:

60kg

Malzeme:

Alüminyum Alaşım

Boyut:

Φ84*12,7*10mm

Nominal çıkış:

1,0 mV/V±15%

Vurgulamak:

High Light

Vurgulamak:

Aluminium alloy load cell sensor

Compression load cell with warranty

Durable load cell for industrial use

Ticaret Bilgisi

Min sipariş miktarı:

Fiyat:

USD5 ~45/piece

Ambalaj bilgileri:

Standart İhracat Ambalajı

Teslim süresi:

5-8 İŞ GÜNÜ

Ödeme koşulları:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini:

Aylık 1000 Adet / Adet

Ürün Tanımı

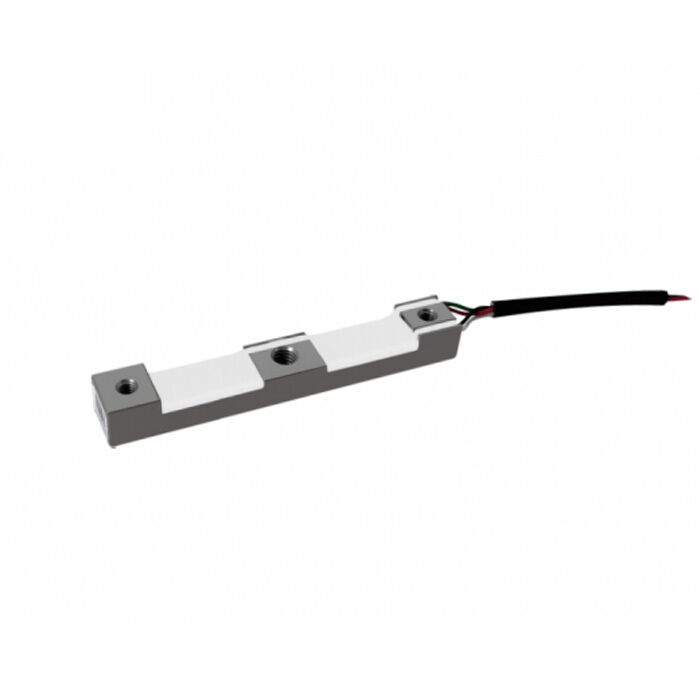

Aluminium Alloy Compression Load Cell

Aluminium Alloy Compression Load Cell

The NY29 is aluminium alloy material load cell,the surface is anodized and coated with white glue that protects sensors against water and erosion.The load cell is high precision that can apply for multidirection force measuring systems,flat weighing and force measurement in confined spaces.

Key Feature:

Aluminium alloy

Capacity: 60kg

Precision: 0.1%R.O.

Protection class: IP65

Rated Output : 1.0 mV/V±15%

Usage & Application:

Mainly used in flat weighing and force measurement in confined spaces.

Dimension:

Aluminium Alloy Compression Load Cell 0

Specification:

Rated Capacities	60kg
Rated Output	1.0 mV/V±15%
Zero Balance	±0.0500mV/V
Non-linearity	0.1 %R.O.
Hysteresis	0.1 %R.O.
Repeatability	0.1 %R.O.
30mins Creep	0.1 %R.O.
30mins Return	0.1 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Input Impedance	1000±10 Ω
Output Impedance	1000±10 Ω
Insulation Impedance	≥3000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP65
Cable	Φ4×0.22m
Recommended Platform Size
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)
