Yük Hücresi Sensörü
>

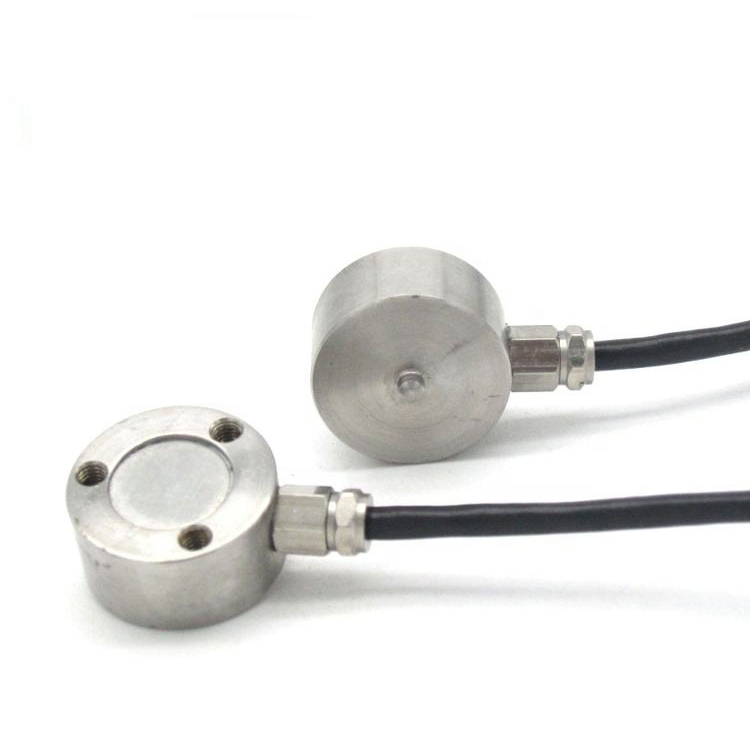

Stainless Steel Compression Load Cell 5-500kg Analog Output

Stainless Steel Compression Load Cell 5-500kg Analog Output

Ürün Ayrıntıları:
Menşe yeri: Çin
Marka adı: RJ
Sertifika: CE/ROSE
Model numarası: RJ
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Marka adı:
RJ
Sertifika:
CE/ROSE
Model numarası:
RJ
Çıkış:
Analog Sensör
Kapasite:
5-500kg
Hassasiyet:
1.5 ± % 0.2 MV/V
uyarma gerilimi:
5 ~ 12 VDC
güvenli aşırı yük:
% 150 RC
Malzeme:
Paslanmaz çelik
Vurgulamak:

High Light

Vurgulamak:

Stainless Steel Load Cell 500kg

,

Analog Output Load Cell Sensor

,

Compression Load Cell 5kg

Ticaret Bilgisi
Min sipariş miktarı:
1
Fiyat:
$40-50
Ambalaj bilgileri:
karton veya tahta sandık
Teslim süresi:
5-8 iş günü
Ödeme koşulları:
L/C,D/A,D/P,T/T,Western Union
Yetenek temini:
2000PC/Ay
Ürün Tanımı

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity

5kg-500kg

Sensitivity

0.5~1.5 mv/V

Precision

0.5 %F·S

Creep

±0.2 %F·S/30min

Non-linearity

±0.5 %F·S

Hysteresis error

±0.5 %F·S

Repeatability

±0.5 %F·S

Zero temperature coefficient

±0.2 %F·S/10

Temperature Effect On Output

±0.2 %F·S/10

Input resistance

500 ± 20 Ω

Output resistance

500 ± 20  Ω

Insulation resistance

≥ 2000 MΩ

Excitation voltage

5 ~ 15 VDC

Working temp. range

-20 ~ 70

Safety overload

150 %F·S

Sealing grade

IP67

Material

Stainless steel

Wiring

Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1

Packing & Transport



Stainless Steel Compression Load Cell 5-500kg Analog Output 2
