Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity

Ürün Ayrıntıları:

Menşe yeri:	Çin
Marka adı:	RJ
Sertifika:	CE/ROSE
Model numarası:	RJ

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Marka adı:

Sertifika:

CE/ROSE

Model numarası:

Kapasite:

10, 20, 30, 40, 50 kg

Açıklama:

Balıkçılık ölçeği yük hücresi

Tekrarlanabilirlik:

% 0.1 FS

Malzeme:

Alüminyum

histerezis:

% 0.2 FS

Çıkış direnci:

1000 ± 10 ohm

Vurgulamak:

High Light

Vurgulamak:

aluminum fishing scale load cell

50kg capacity load cell sensor

fishing scale sensor 10-50kg

Ticaret Bilgisi

Min sipariş miktarı:

Fiyat:

$2-5

Ambalaj bilgileri:

karton veya tahta sandık

Teslim süresi:

5-8 iş günü

Ödeme koşulları:

L/C,D/A,D/P,T/T,Western Union

Yetenek temini:

2000PC/Ay

Ürün Tanımı

Fishing Scales Small Size Flat Load Cell Weight Sensor 30kg 40kg 50Kg

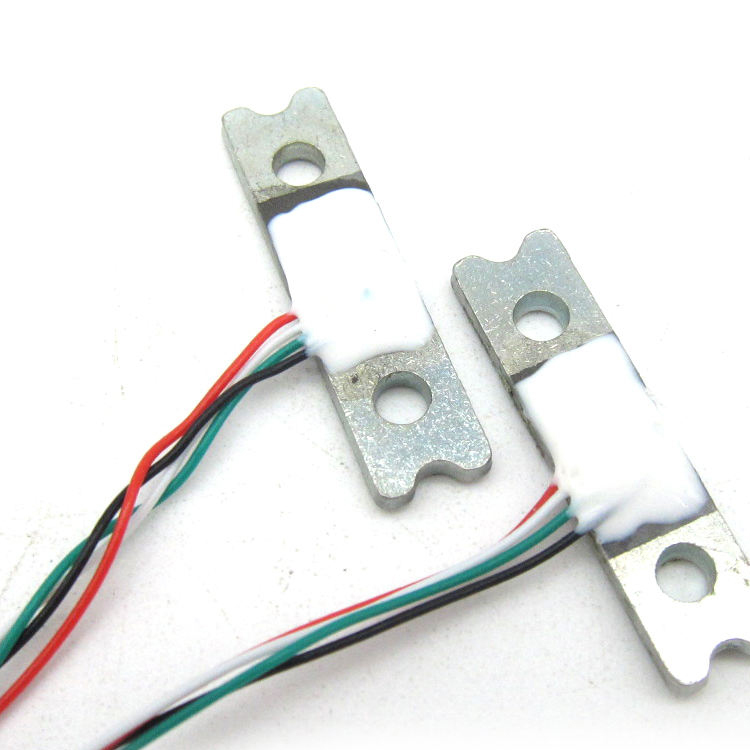

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 0

Parameters

Application	finshing scale
Model	RJ
Capacity	10kg, 20kg, 30kg
Comprehensive Error	0.2
Output sensitivity	1.0±0.1mV/V
Nonlinearity	0.01% F.S.
Repeatability	0.1% F.S.
Hyteresis	0.2% F.S.
Creep	0.1 (3min) % F.S.
Zero balance	0.1 (1min) % F.S.
Temp.effect on zero	0.2 % F.S./10℃
Temp. effect on span	≤0.15 F.S./10℃
Zero output	±0.3 MV/V
Input resistance	1000±50 ohm
Output resistance	1000±50 ohm
insulation resistance	≥2000 MΩ
Recommended excitation voltage	5-10V
Compensated temperature range	-10-+50℃
Ultimate overload	150%RO
loadcell material	Aluminum alloy

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 1

Packing & Transport

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 2
