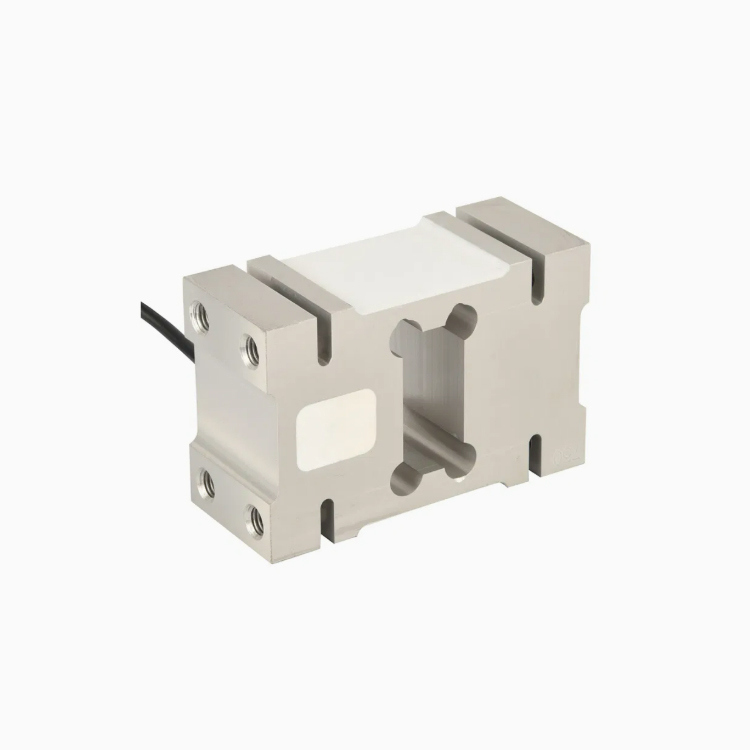

Customizable Single Point Platform Bench Scale Weighing Load Cell Sensor
Single Point LOAD CELL
A load cell converts a force such as tension, compression, pressure or torque into ameasurable and standardized signal (electrical, pneumatic hydraulic or mechanicaldisplacement indicator). It is a force sensor. As the force applied to the load cellincreases, the signal changes proportionally. The most common types of load cellsused in industrial applications are pneumatic, hydraulic and strain gauge types.
| SCALE SPECIFICATIONS |
| Rated Capacity |
150/200/250/300/500/600/750/ 1000/1500/2000kg |
| Accuracy Class |
C3 |
| Rated Output |
2.0±0.2mV/V |
| Temperature Effect on Zero |
±0.02%F.S/10ºC |
| Temperature Effect on Sensitity |
±0.02%F.S/10ºC |
| Creep (30 min) |
±0.016%F.S |
| Input Resistance |
406±10Ω |
| Output Resistance |
350±3Ω |
| Operating Temperature Range |
-30ºC ~ +70ºC |
| Application For |
Bench/Counting scales |
| Safe Overload |
150%F.S |
| Destructive Load |
300%F.S |
| Excitation Recommend |
4~12V DC, max 15V DC |
| Construction |
alloy steel or stainless steel |
| Protection Class |
IP67 |
| Cable length |
4 core cable standard lengths |
2m(50~500kg)
|
| diameter |
Ø 5 |
| option |
customized cable length |
HIGH ACCURACY AND RELIABILITY:
This load cell offers precise measurements with an accuracy of C3, ensuring reliable results in various applications. Its comprehensive error is as low as 0.03%FS, making it suitable for demanding industries.
DURABLE CONSTRUCTION:
The load cell is made from high-quality alloy steel, providing excellent durability and resistance to corrosion.
DURABLE CONSTRUCTION:
The load cell is made from high-quality alloy steel, providing excellent durability and resistance to corrosion.
EASY INTEGRATION:
With an excitation voltage of 9-12 VDC and a sensitivity of 2.0 0.004 mV/V, this load cell is easy to integrate into existing systems, making it a convenient choice for users.
USER-FRIENDLY FEATURES:
The load cell features a zero balance of 1.0% FS, allowing for simple and efficient calibration, and a comprehensive error of 0.02% FS for added reliability.
FAQ
Q1. How can I choose a suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
Q2. How can I pay?
We accept many payment terms, such as T/T, Western Union…
Q3. What should I do if I do not know how to use it?
Manual users will be sent together, you can also contact us for more technological support.
Q4. What should I do if some parts are broken?
We do standard export packages and warranties except wear parts.
Q5: Can I print our logo on the products and change the color of the products?
Yes, all colors and patterns are available, other OEM / ODM requests also be welcome
